Cloud Architecture Diagram Family

Cloud infrastructure diagrams with storage, compute, function, and database nodes for AWS, Azure, and GCP architecture visualization.

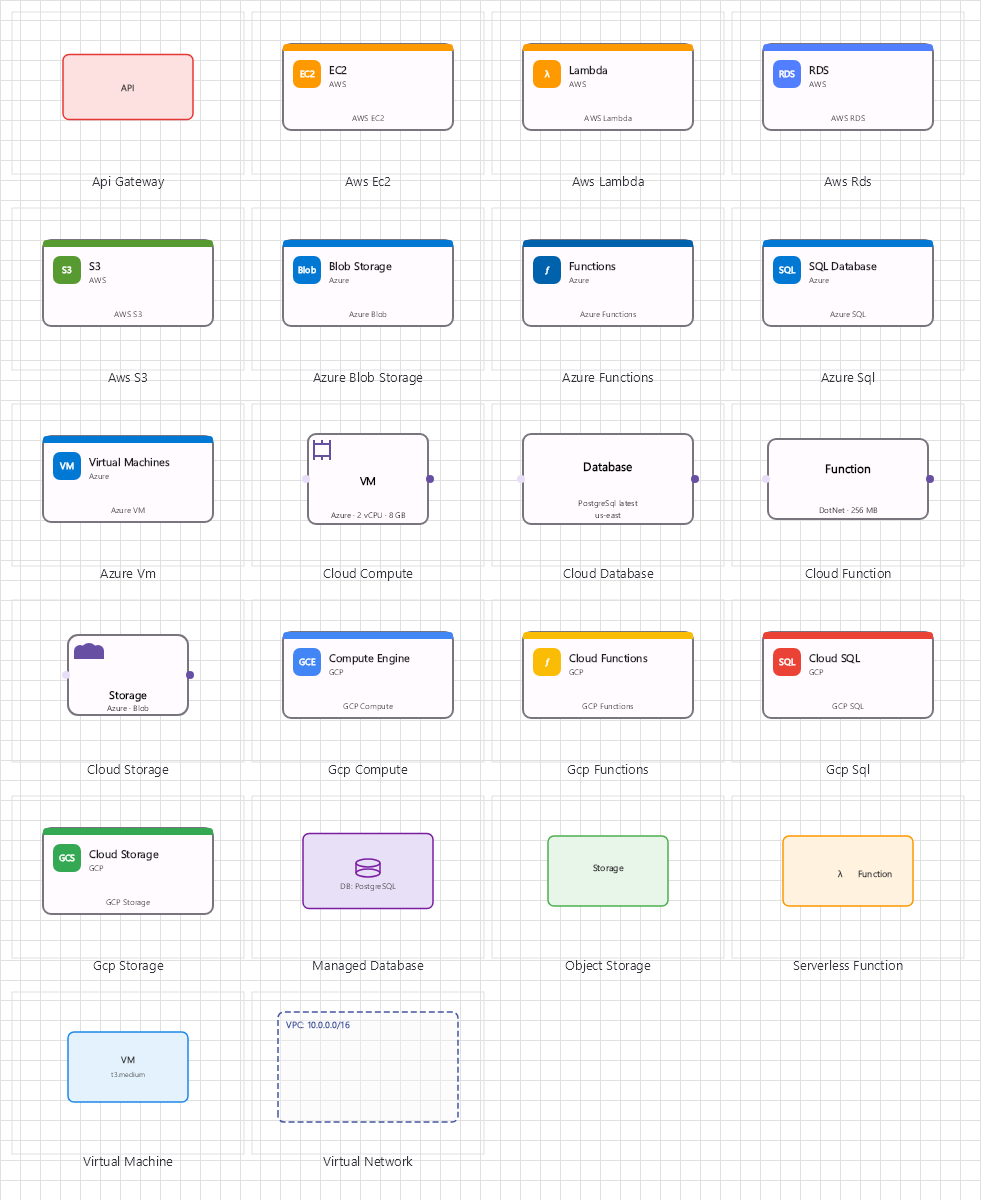

Cloud family: compute, storage, functions and managed databases

Table of Contents

Overview

Base Control: CloudControl : MaterialControl
Namespace: Beep.Skia.Cloud

The CloudControl is the root control for this diagram family. It inherits MaterialControl and provides shared port management, styling, and template methods for all nodes in the family.

This family contains 4 node types.

Node Types

Node ClassShapeDescription
CloudStorageNodeFile/folder bucket iconCloud storage service (AWS S3, Azure Blob, GCP Cloud Storage).
CloudComputeNodeServer/instance iconVirtual machine/container compute (EC2, Azure VM, Compute Engine).
CloudFunctionNodeLambda/function iconServerless function (AWS Lambda, Azure Functions, Cloud Functions).
CloudDatabaseNodeDatabase cylinderManaged database service (RDS, Cosmos DB, Cloud SQL).

CloudStorageNode

Cloud storage service (AWS S3, Azure Blob, GCP Cloud Storage).

ShapeFile/folder bucket icon
Input Ports1+
Output Ports1+

CloudComputeNode

Virtual machine/container compute (EC2, Azure VM, Compute Engine).

ShapeServer/instance icon
Input Ports1+
Output Ports1+

CloudFunctionNode

Serverless function (AWS Lambda, Azure Functions, Cloud Functions).

ShapeLambda/function icon
Input Ports1+
Output Ports1+

CloudDatabaseNode

Managed database service (RDS, Cosmos DB, Cloud SQL).

ShapeDatabase cylinder
Input Ports1+
Output Ports1+

Connection Points

Every node in this family exposes connection points (ports) for linking to other nodes. Port positions are computed lazily by LayoutPorts(), which runs when MarkPortsDirty() flags the layout as stale after a move or resize.

Node ClassInput PortsOutput PortsExtra
CloudStorageNode1+1+—
CloudComputeNode1+1+—
CloudFunctionNode1+1+—
CloudDatabaseNode1+1+—

Connection Conventions

When building diagrams with this family, follow these conventions:

  • Nodes represent cloud services with provider-agnostic shapes
  • Connection lines represent data flow, API calls, or network routes
  • Properties allow specifying provider, region, SKU, and configuration

Usage Example

Complete example showing creation, node placement, and connection:

C# Example

var cloud = new CloudControl
{
    X = 50, Y = 50,
    Width = 700, Height = 500
};
drawingManager.AddComponent(cloud);

var storage = new CloudStorageNode
{
    X = 100, Y = 100,
    Text = "S3 Bucket",
    StorageType = "Object Storage"
};
var compute = new CloudComputeNode
{
    X = 300, Y = 100,
    Text = "EC2 Instance",
    InstanceType = "t3.medium"
};
var func = new CloudFunctionNode
{
    X = 300, Y = 250,
    Text = "Lambda: ProcessImage"
};
var db = new CloudDatabaseNode
{
    X = 500, Y = 100,
    Text = "RDS PostgreSQL",
    EngineType = "PostgreSQL"
};

drawingManager.AddComponent(storage);
drawingManager.AddComponent(compute);
drawingManager.AddComponent(func);
drawingManager.AddComponent(db);

drawingManager.ConnectComponents(storage.OutPoints[0], compute.InPoints[0]);
drawingManager.ConnectComponents(compute.OutPoints[0], db.InPoints[0]);
drawingManager.ConnectComponents(storage.OutPoints[1], func.InPoints[0]);
