ETL (Data Pipeline) Diagram Family

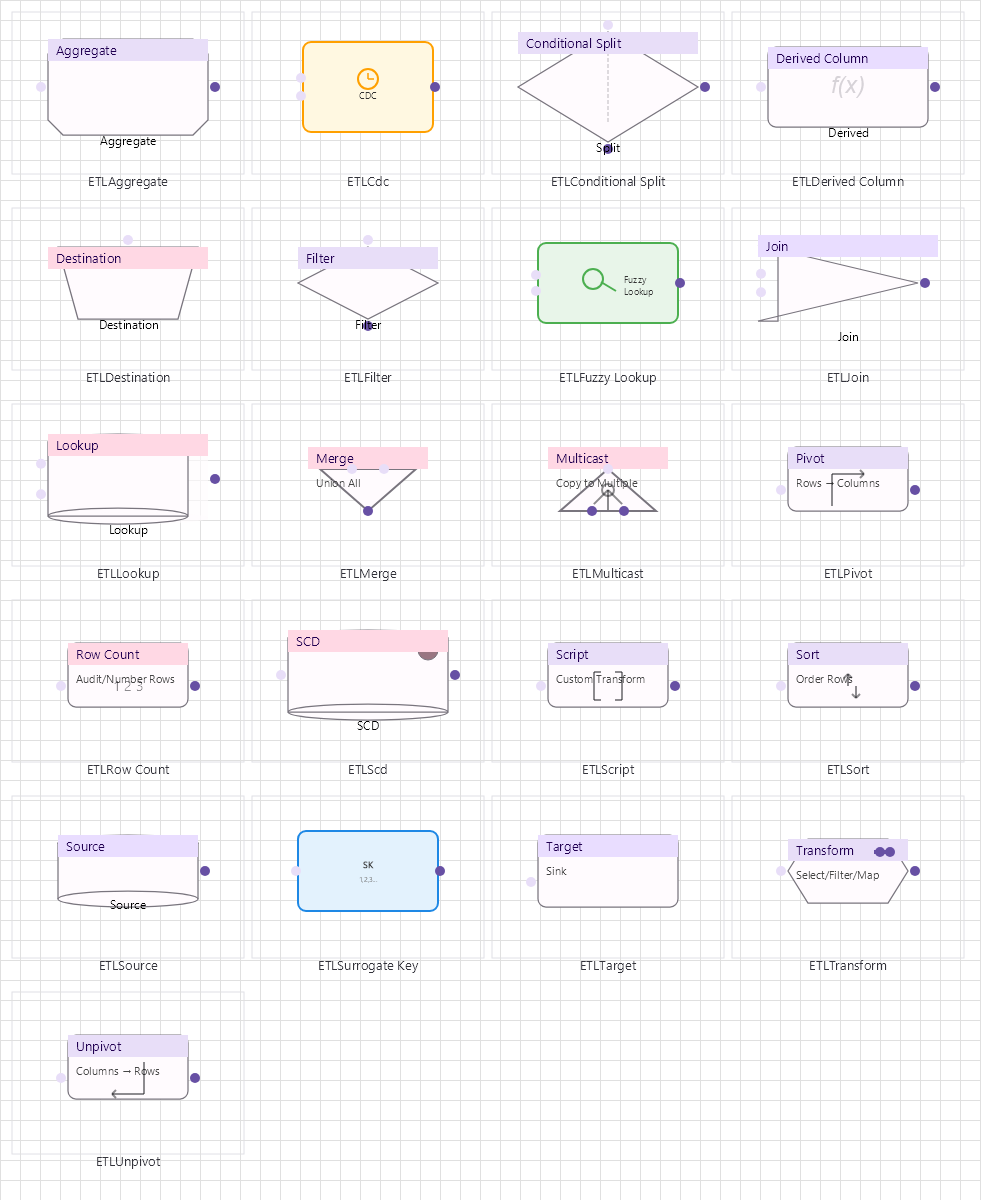

ETL family: sources, transforms, lookups and destinations

Overview
Node Types
Connection Points
Connection Conventions
Usage Example

Overview

Base Control: ETLControl : MaterialControl
Namespace: Beep.Skia.ETL

The ETLControl is the root control for this diagram family. It inherits MaterialControl and provides shared port management, styling, and template methods for all nodes in the family.

This family contains 18 node types.

Node Types

Node Class	Shape	Description
`ETLSource`	Table/source icon	Data extraction source (database, file, API).
`ETLTransform`	Gear/rectangle	Generic data transformation step.
`ETLTarget`	Database/target icon	Data loading destination.
`ETLDestination`	Target container	Alternative destination node.
`ETLFilter`	Funnel	Row-level filtering by condition.
`ETLSort`	Arrow up/down	Sort operation on data stream.
`ETLJoin`	Merge icon	Join two data streams (inner/left/right/full).
`ETLMerge`	Merge (vertical)	Merge/union compatible data streams.
`ETLLookup`	Magnifying glass	Reference data lookup/join.
`ETLAggregate`	Sigma symbol	Aggregation (SUM, COUNT, AVG, GROUP BY).
`ETLPivot`	Arrow rotate	Pivot rows to columns.
`ETLUnpivot`	Arrow counter-rotate	Unpivot columns to rows.
`ETLConditionalSplit`	Diamond	Route rows to different outputs based on conditions.
`ETLDerivedColumn`	Column icon	Compute new column from expression.
`ETLMulticast`	Triangle split	Duplicate stream to multiple outputs.
`ETLRowCount`	Counter	Count rows passing through.
`ETLScd`	Clock icon	Slowly Changing Dimension (Type 1/2/3).
`ETLScript`	Code block	Custom script/expression execution.

ETLSource

Data extraction source (database, file, API).

Shape	Table/source icon
Input Ports	0
Output Ports	1+

ETLTransform

Generic data transformation step.

Shape	Gear/rectangle
Input Ports	1+
Output Ports	1+

ETLTarget

Data loading destination.

Shape	Database/target icon
Input Ports	1+
Output Ports	0-1

ETLDestination

Alternative destination node.

Shape	Target container
Input Ports	1+
Output Ports	0

ETLFilter

Row-level filtering by condition.

Shape	Funnel
Input Ports	1
Output Ports	1

ETLSort

Sort operation on data stream.

Shape	Arrow up/down
Input Ports	1
Output Ports	1

ETLJoin

Join two data streams (inner/left/right/full).

Shape	Merge icon
Input Ports	2
Output Ports	1

ETLMerge

Merge/union compatible data streams.

Shape	Merge (vertical)
Input Ports	2+
Output Ports	1

ETLLookup

Reference data lookup/join.

Shape	Magnifying glass
Input Ports	2
Output Ports	1

ETLAggregate

Aggregation (SUM, COUNT, AVG, GROUP BY).

Shape	Sigma symbol
Input Ports	1
Output Ports	1

ETLPivot

Pivot rows to columns.

Shape	Arrow rotate
Input Ports	1
Output Ports	1

ETLUnpivot

Unpivot columns to rows.

Shape	Arrow counter-rotate
Input Ports	1
Output Ports	1

ETLConditionalSplit

Route rows to different outputs based on conditions.

Shape	Diamond
Input Ports	1
Output Ports	2+

ETLDerivedColumn

Compute new column from expression.

Shape	Column icon
Input Ports	1
Output Ports	1

ETLMulticast

Duplicate stream to multiple outputs.

Shape	Triangle split
Input Ports	1
Output Ports	2+

ETLRowCount

Count rows passing through.

Shape	Counter
Input Ports	1
Output Ports	1

ETLScd

Slowly Changing Dimension (Type 1/2/3).

Shape	Clock icon
Input Ports	1
Output Ports	1

ETLScript

Custom script/expression execution.

Shape	Code block
Input Ports	1+
Output Ports	1+

Connection Points

Every node in this family exposes connection points (ports) for linking to other nodes. Port positions are computed lazily by LayoutPorts(), which runs when MarkPortsDirty() flags the layout as stale after a move or resize.

Node Class	Input Ports	Output Ports	Extra
`ETLSource`	0	1+	—
`ETLTransform`	1+	1+	—
`ETLTarget`	1+	0-1	—
`ETLDestination`	1+	0	—
`ETLFilter`	1	1	—
`ETLSort`	1	1	—
`ETLJoin`	2	1	—
`ETLMerge`	2+	1	—
`ETLLookup`	2	1	—
`ETLAggregate`	1	1	—
`ETLPivot`	1	1	—
`ETLUnpivot`	1	1	—
`ETLConditionalSplit`	1	2+	—
`ETLDerivedColumn`	1	1	—
`ETLMulticast`	1	2+	—
`ETLRowCount`	1	1	—
`ETLScd`	1	1	—
`ETLScript`	1+	1+	—

Connection Conventions

When building diagrams with this family, follow these conventions:

Flow direction: left to right or top to bottom
Sources have no input ports, targets have no output ports
Transforms may have multiple inputs/outputs
Line colors indicate data flow, error flow, or logging flow

Usage Example

Complete example showing creation, node placement, and connection:

C# Example

var etl = new ETLControl
{
    X = 50, Y = 50,
    Width = 800, Height = 500
};
drawingManager.AddComponent(etl);

var src = new ETLSource { X = 100, Y = 250, Text = "SQL Server" };
var filter = new ETLFilter { X = 280, Y = 250, Text = "Filter Active" };
var transform = new ETLTransform { X = 460, Y = 250, Text = "Normalize" };
var tgt = new ETLTarget { X = 640, Y = 250, Text = "Data Warehouse" };

drawingManager.AddComponent(src);
drawingManager.AddComponent(filter);
drawingManager.AddComponent(transform);
drawingManager.AddComponent(tgt);

drawingManager.ConnectComponents(src.OutPoints[0], filter.InPoints[0]);
drawingManager.ConnectComponents(filter.OutPoints[0], transform.InPoints[0]);
drawingManager.ConnectComponents(transform.OutPoints[0], tgt.InPoints[0]);
