Architecture Overview
Understand the layered architecture, project structure, and design patterns that power Beep.Skia

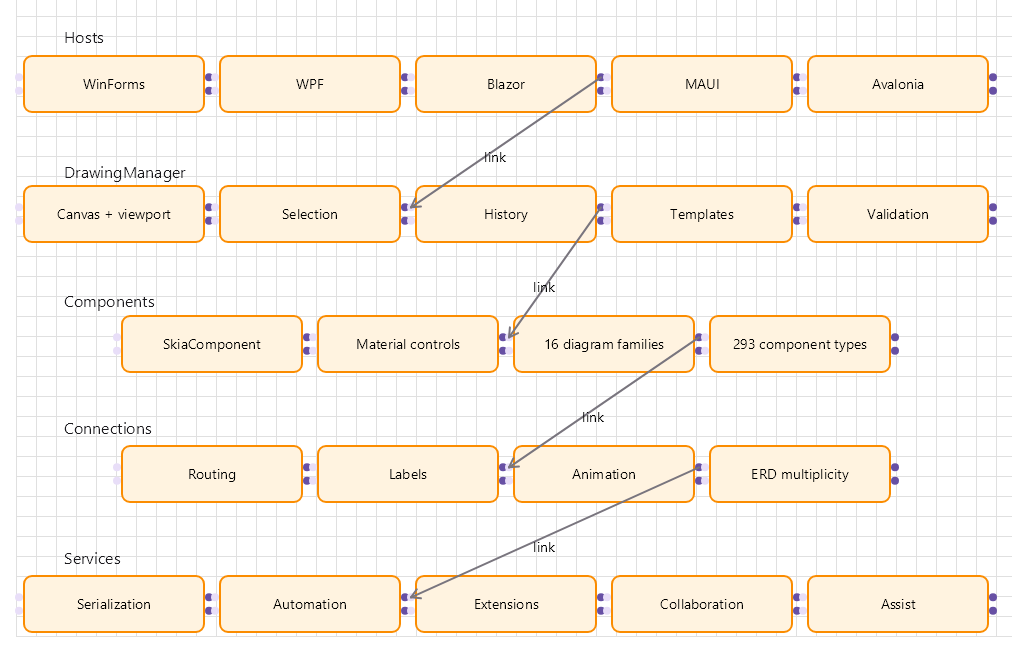

The diagram above was drawn with Beep.Skia itself: the generator loads it as a normal component graph and renders it through DrawingManager.Draw.
Table of Contents
Solution Structure
The Beep.Skia solution is composed of 17 modular projects, each with a well-defined responsibility. This separation ensures maintainability, testability, and allows consumers to reference only the packages they need.
| # | Project | Layer | Description |
|---|---|---|---|
| 1 | Beep.Skia | Core | Shared abstractions, base classes, interfaces, and the central SkiaComponent model |
| 2 | Beep.Skia.Model | Model | Domain models, data structures, diagram entity definitions, and serialization contracts |
| 3 | Beep.Skia.Domain | Domain | Business logic, diagram operations, validation rules, and domain services |
| 4 | Beep.Skia.Infrastructure | Infrastructure | Persistence, file I/O, logging, and cross-cutting concerns |
| 5 | Beep.Skia.Canvas | Core | Rendering surface, viewport management, zoom/pan, and SkiaSharp canvas abstraction |
| 6 | Beep.Skia.Nodes | Core | All node types across 18 diagram families, hit testing, and per-node rendering |
| 7 | Beep.Skia.Connections | Core | Connection lines, routing algorithms, port management, and arrowhead rendering |
| 8 | Beep.Skia.Serialization | Core | JSON and binary diagram serialization, version migration, and export formats |
| 9 | Beep.Skia.Theming | Core | Material Design 3.0 theme engine, color palettes, typography, and style tokens |
| 10 | Beep.Skia.Workflow | Core | Workflow automation engine, action execution, conditional branching, and state management |
| 11 | Beep.Skia.Editor | Presentation | Visual diagram editor host, toolbars, property grids, and toolbox integration |
| 12 | Beep.Skia.Controls | Presentation | 60+ reusable UI controls including property editors, color pickers, and mini-maps |
| 13 | Beep.Skia.Host | Host | Application shell, window management, menu systems, and startup configuration |
| 14 | Beep.Skia.Demo | Host | Demonstration and sample application showcasing all diagram families and features |
| 15 | Beep.Skia.Tests | Infrastructure | Unit tests, integration tests, and rendering verification |
| 16 | Beep.Skia.Benchmarks | Infrastructure | Performance benchmarks for rendering, hit testing, and serialization |
| 17 | Beep.Skia.Extensions | Core | Extension methods, utility classes, and shared helpers across all projects |
Layered Architecture
Beep.Skia follows a strict layered architecture where dependencies flow in one direction: from the Host layer down through Presentation, Core, Domain, and Model, terminating at Infrastructure. This design enforces separation of concerns and prevents circular dependencies.
| Layer | Projects | Responsibility |
|---|---|---|
| Host | Beep.Skia.Host, Beep.Skia.Demo | Application entry points, shell configuration, DI container setup, and platform-specific hosting. Depends on Presentation and Core layers. |
| Presentation | Beep.Skia.Editor, Beep.Skia.Controls | User interface components, visual editors, toolbars, property grids, and interactive controls. Depends on Core and Domain layers. |
| Core | Beep.Skia, Beep.Skia.Canvas, Beep.Skia.Nodes, Beep.Skia.Connections, Beep.Skia.Serialization, Beep.Skia.Theming, Beep.Skia.Workflow, Beep.Skia.Extensions | Framework engine: rendering pipeline, node model, connection routing, serialization, theming, and workflow execution. Depends on Domain and Model layers. |
| Domain | Beep.Skia.Domain | Business rules, diagram operations, validation logic, and domain services. Depends on Model layer. |
| Model | Beep.Skia.Model | Pure data objects, entity definitions, enums, and serialization contracts. Has no project dependencies. |
| Infrastructure | Beep.Skia.Infrastructure, Beep.Skia.Tests, Beep.Skia.Benchmarks | Persistence, logging, cross-cutting concerns, tests, and benchmarks. Depends on Core and Domain layers. |
The dependency rule ensures that inner layers (Model, Domain) have no knowledge of outer layers (Presentation, Host). This allows the core framework to be used in any .NET application regardless of the UI technology.
Key Design Patterns
| Pattern | Usage in Beep.Skia |
|---|---|
| Composite | SkiaComponent serves as the base for all visual elements; components can contain child components forming a hierarchical tree. The canvas renders the entire component graph recursively. |
| Strategy | Connection routing algorithms (Straight, Orthogonal, Curved) are swappable per connection through LineRoutingMode. |
| Observer | Canvas invalidation and property change notifications propagate through the component tree. Nodes notify the drawing manager of position, size, and state changes. |
| Command | Diagram mutations (add, remove, move, resize, connect, disconnect) are encapsulated as DrawingAction objects, enabling undo/redo through HistoryManager. |
| Data Transfer Object | Serialization converts the live graph into plain DTOs. DrawingManager.ToDto() produces a DiagramDto of ComponentDto and LineDto records, and LoadFromDto() restores it. |
| Factory | SkiaComponentRegistry creates component instances from discovered type definitions (AssemblyClassDefinition), powering the palette and template loading. |
| Decorator | Visual decorators (selection handles, resize grips, connection ports) wrap base components without modifying their core behavior. |
| Mediator | DrawingManager acts as the central mediator, coordinating interactions between nodes, connections, the canvas, and input events. |
Target Frameworks
Beep.Skia targets modern .NET runtimes with cross-platform support:
| Framework | Platforms | Notes |
|---|---|---|
| .NET 8 | Windows, Linux, macOS | Long-term support (LTS) release. Recommended for production deployments. |
| .NET 9 | Windows, Linux, macOS | Standard-term support (STS) release. Includes latest performance improvements in SkiaSharp integration. |
All projects in the solution support both net8.0 and net9.0 target framework monikers. The framework is compatible with Windows Forms, WPF, MAUI, Avalonia, and Blazor Hybrid hosting models.
Project Dependency Graph
The dependency graph follows a clean layered structure. Top-level projects depend on lower-level projects; no circular dependencies exist.
| Project | Depends On |
|---|---|
| Beep.Skia.Model | (none — leaf project) |
| Beep.Skia.Domain | Beep.Skia.Model |
| Beep.Skia.Extensions | Beep.Skia.Model |
| Beep.Skia | Beep.Skia.Model, Beep.Skia.Domain, Beep.Skia.Extensions |
| Beep.Skia.Canvas | Beep.Skia |
| Beep.Skia.Nodes | Beep.Skia, Beep.Skia.Canvas |
| Beep.Skia.Connections | Beep.Skia, Beep.Skia.Canvas |
| Beep.Skia.Theming | Beep.Skia |
| Beep.Skia.Serialization | Beep.Skia, Beep.Skia.Model |
| Beep.Skia.Workflow | Beep.Skia, Beep.Skia.Domain |
| Beep.Skia.Controls | Beep.Skia, Beep.Skia.Theming |
| Beep.Skia.Editor | Beep.Skia, Beep.Skia.Nodes, Beep.Skia.Connections, Beep.Skia.Controls, Beep.Skia.Theming, Beep.Skia.Serialization |
| Beep.Skia.Infrastructure | Beep.Skia, Beep.Skia.Domain |
| Beep.Skia.Host | Beep.Skia.Editor, Beep.Skia.Infrastructure |
| Beep.Skia.Demo | Beep.Skia.Host, Beep.Skia.Editor, Beep.Skia.Nodes, Beep.Skia.Theming |
| Beep.Skia.Tests | Beep.Skia, Beep.Skia.Nodes, Beep.Skia.Connections, Beep.Skia.Serialization, Beep.Skia.Domain |
| Beep.Skia.Benchmarks | Beep.Skia, Beep.Skia.Nodes, Beep.Skia.Canvas, Beep.Skia.Connections |
This dependency design ensures that the core rendering engine (Beep.Skia, Beep.Skia.Canvas, Beep.Skia.Nodes) can be used independently of the editor host, making it suitable for embedding in lightweight applications or server-side diagram generation scenarios.
